109-9030
CAT
BYP161559
| Availability: | |
|---|---|

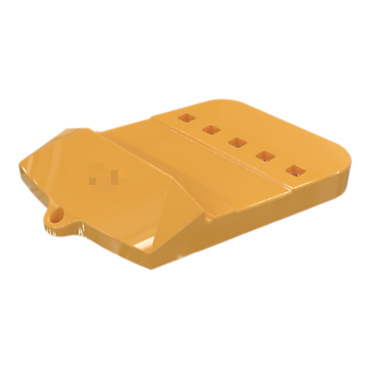

The 109-9030is a high-performance J600 Half Arrow, engineered for superior penetration and wear resistance in demanding mining and excavation applications. Specifically designed for use with Caterpillar D994 D992machines, this Half Arrow features a robust half-arrow profile that delivers aggressive digging action and extended service life. it is built to handle extreme abrasion and impact loads.
Optimized Half-Arrow Profile: Designed for excellent penetration and efficient material flow, reducing drag and improving filling capacity in a variety of materials.
Superior Wear & Impact Resistance: Forged from high-strength alloy steel and treated with advanced heat treatment processes, achieving an optimal balance of hardness and toughness for maximum durability.
Perfect J600 System Compatibility: Ensures a secure and precise fit with J600 adapters, providing reliable retention and optimal power transmission.
Extended Service Life: The wear-resistant design significantly outlasts standard teeth, reducing change-out frequency and lowering the cost-per-hour of operation.
Enhanced Productivity: Improves digging efficiency and reduces cycle times, leading to higher overall output in loading and excavation tasks.
| Attribute | Specification |
|---|---|
| Part Number | 109-9030 |
| Adapter Type | J600 Half Arrow |
| Compatible Machines | D994 D992 |
| Compatible Teeth | J600 Series |
| Material | High-Strength Alloy Steel |
| Heat Treatment | Quenched & Tempered |
| Hardness | 34-40HRC |
| Weight | 150.5KGS |
Primary Machines: Caterpillar D994 D992Wheel Loaders.
Metal Mining: Iron ore, copper ore, and bauxite loading operations.
Quarrying: High-abrasion granite, limestone, and basalt extraction.
Bulky Material Handling: Shot rock, overburden, and industrial slag.
Heavy-Duty Earthmoving: Large-scale dam construction and mining pre-stripping.
Welding Preparation: Ensure bucket lip is clean and preheated to 200-250°C before welding to prevent cracking.
Alignment Check: Use alignment jigs to maintain proper adapter spacing and digging angle.
Post-Weld Care: Allow slow cooling under insulation blankets to relieve internal stresses.
Proven Durability: Field-tested in Australian iron ore and Chilean copper mining operations.
Quality Validation: Every batch undergoes ultrasonic testing and hardness mapping.
Technical Support: Provide weld procedure specifications (WPS) and installation guidance.
Customization Available: Special coatings (e.g., tungsten carbide overlay) for extreme abrasion zones.
