109-2675
CAT
BYP161482
| Availability: | |
|---|---|

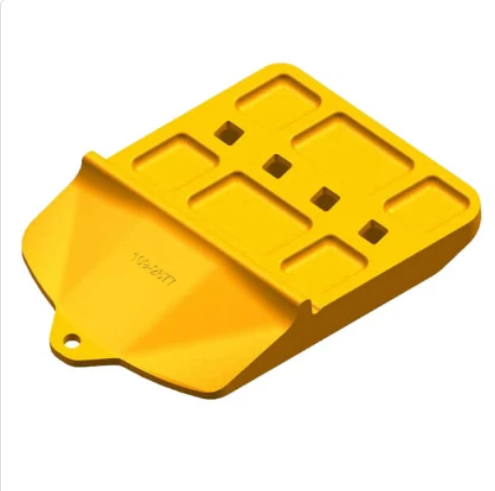

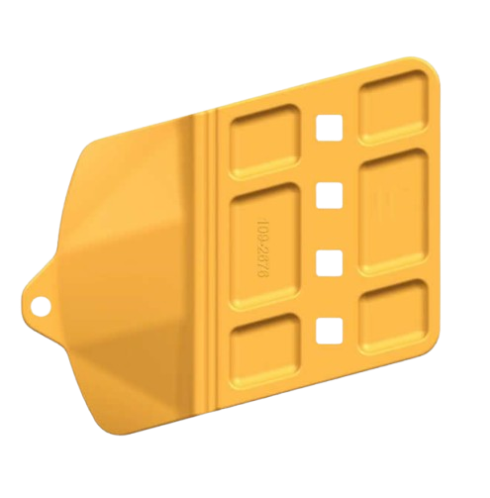

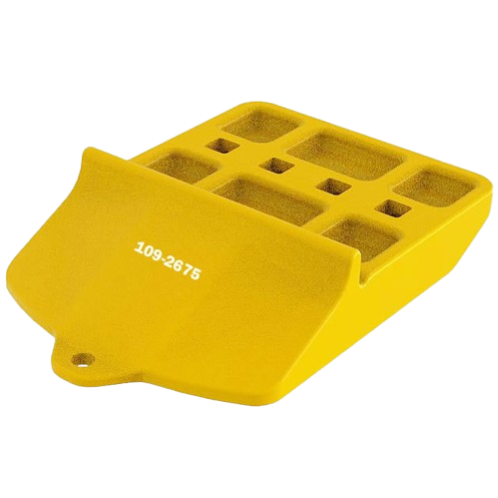

The 109-2675 is a high-performance J600 Half Arrow, engineered for superior penetration and wear resistance in demanding mining and excavation applications. Specifically designed for use with Caterpillar 992D, 992G, and E375 machines, this Half Arrow features a robust half-arrow profile that delivers aggressive digging action and extended service life. it is built to handle extreme abrasion and impact loads.
Optimized Half-Arrow Profile: Designed for excellent penetration and efficient material flow, reducing drag and improving filling capacity in a variety of materials.
Superior Wear & Impact Resistance: Forged from high-strength alloy steel and treated with advanced heat treatment processes, achieving an optimal balance of hardness and toughness for maximum durability.
Perfect J600 System Compatibility: Ensures a secure and precise fit with J600 adapters, providing reliable retention and optimal power transmission.
Extended Service Life: The wear-resistant design significantly outlasts standard teeth, reducing change-out frequency and lowering the cost-per-hour of operation.
Enhanced Productivity: Improves digging efficiency and reduces cycle times, leading to higher overall output in loading and excavation tasks.
| Attribute | Specification |
|---|---|
| Part Number | 109-2675 |
| Adapter Type | J600 Half Arrow |
| Compatible Machines | CAT E375, 992D, 992G |
| Compatible Teeth | J600 Series |
| Material | High-Strength Alloy Steel |
| Heat Treatment | Quenched & Tempered |
| Hardness | 34-40HRC |
| Weight | 114.00KGS |
Primary Machines: Caterpillar E375 Hydraulic Excavator, 992D & 992G Wheel Loaders.
Metal Mining: Iron ore, copper ore, and bauxite loading operations.
Quarrying: High-abrasion granite, limestone, and basalt extraction.
Bulky Material Handling: Shot rock, overburden, and industrial slag.
Heavy-Duty Earthmoving: Large-scale dam construction and mining pre-stripping.
Welding Preparation: Ensure bucket lip is clean and preheated to 200-250°C before welding to prevent cracking.
Alignment Check: Use alignment jigs to maintain proper adapter spacing and digging angle.
Post-Weld Care: Allow slow cooling under insulation blankets to relieve internal stresses.
Proven Durability: Field-tested in Australian iron ore and Chilean copper mining operations.
Quality Validation: Every batch undergoes ultrasonic testing and hardness mapping.
Technical Support: Provide weld procedure specifications (WPS) and installation guidance.
Customization Available: Special coatings (e.g., tungsten carbide overlay) for extreme abrasion zones.
