| Item | Specification |
|---|---|
| Part Number | 104-9277 (or 1049277) |
| Product Name | Ripper Shank Assembly |
| Product Type | Dozer Ripper Ground Engaging Tool (GET) |
| Compatible Machine Models | Caterpillar D11N, D11R Dozer |
| Single Weight | 1,043 kgs (2,299 lbs) |
| Material | 35CrMo (Chromium-Molybdenum Alloy Steel) |
| Application | Provides ripping capability for hard materials, rock, and compacted ground |
| Industry Focus | Mining, Heavy Construction, Quarrying, Land Clearing |
Caterpillar 104-9277 ripper shank
D11R ripper shank assembly
D11N undercarriage parts
1049277 ground engaging tool
1043 kg ripper shank for CAT D11
Replacement ripper shank for D11R
35CrMo ripper shank
Caterpillar dozer ripper shank

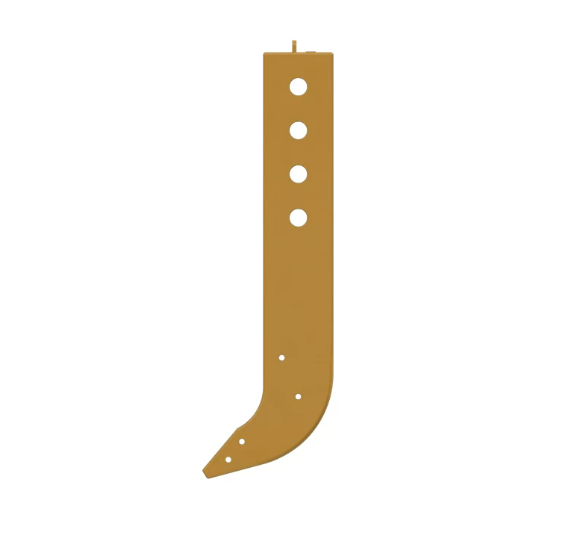

The Caterpillar 104-9277 Ripper Shank Assembly is a genuine OEM-specification ground engaging tool designed for the Caterpillar D11N and D11R dozers. This ripper shank is a critical component that connects to the ripper frame and holds the ripper tooth point, providing the structural backbone for ripping operations in hard materials, rock, and compacted ground.
Manufactured from 35CrMo (Chromium-Molybdenum alloy steel), this ripper shank offers superior strength, toughness, and wear resistance. The 35CrMo material provides excellent hardenability and resistance to impact and fatigue, making it ideal for the extreme forces encountered during ripping operations.
The D11N and D11R are large dozers used in mining, heavy construction, quarrying, and land clearing applications.
| Property | Detail |
|---|---|
| Material Grade | 35CrMo (Chromium-Molybdenum Steel) |
| Chromium Content | ~0.90-1.20% |
| Molybdenum Content | ~0.15-0.25% |
| Carbon Content | ~0.32-0.40% |
| Key Properties | High hardenability, excellent toughness, impact resistance |
| Application | Heavy-duty ripper shanks, high-stress components |
| Feature | Benefit |
|---|---|
| 35CrMo Alloy Steel | Superior strength, toughness, and impact resistance |
| Ripper Shank Design | Provides the structural foundation for ripping operations |
| Heat-Treated Construction | Enhanced wear resistance and service life |
| Heavy-Duty (1,043 kg) | Built for the largest dozer applications |
| D11N/D11R Optimized | Specifically engineered for CAT D11 series dozers |
| Direct OEM Replacement | Guaranteed fit and performance |
| Specification | Detail |
|---|---|
| Machine Models | Caterpillar D11N, D11R Dozer |
| Machine Type | Large Dozer |
| Operating Weight | ~100,000 - 110,000 kg |
| Engine Power | ~850-900 HP |
| Application | Mining, heavy construction, quarrying, land clearing |
| Component | Description |
|---|---|
| Ripper Tooth Point | Attaches to the shank tip for penetration |
| Ripper Pin | Secures the tooth point to the shank |
| Ripper Frame | Mounting structure for the shank |
| Ripper Shank Protector | Wear protection for the shank |
Lifting Requirement: Due to extreme weight (1,043 kg / 1.04 metric tons), specialized heavy lifting equipment is mandatory
Professional Installation: Requires trained personnel and appropriate heavy equipment
Pin Alignment: Ensure proper alignment when installing tooth points
Regular Inspection: Check for wear, cracks, and deformation periodically
Replacement: Replace when worn or damaged beyond OEM specifications
Protector Installation: Install shank protectors to extend service life
| Condition | Action |
|---|---|
| New shank - full profile | Normal operation |
| Moderate wear on tip area | Monitor regularly |
| Excessive wear (reduced strength) | Replace shank |
| Cracks or deformation | Replace immediately |
| Worn pin holes | Replace shank |
| Item | Detail |
|---|---|
| Part Number | 104-9277 / 1049277 |
| Type | Ripper Shank Assembly |
| Material | 35CrMo Alloy Steel |
| Weight | 1,043 kg per piece |
| Compatibility | CAT D11N, D11R Dozer |
| Packaging | Individual crate |
Note: This is a ripper shank assembly for the Caterpillar D11N and D11R dozers manufactured from 35CrMo alloy steel. Due to its extreme weight (1,043 kg / 1.04 metric tons / 2,299 lbs), specialized heavy lifting equipment and professional installation are mandatory. Verify machine serial number and ripper configuration before ordering. Regular inspection of the ripper shank is essential for optimal ripping performance and safety.
