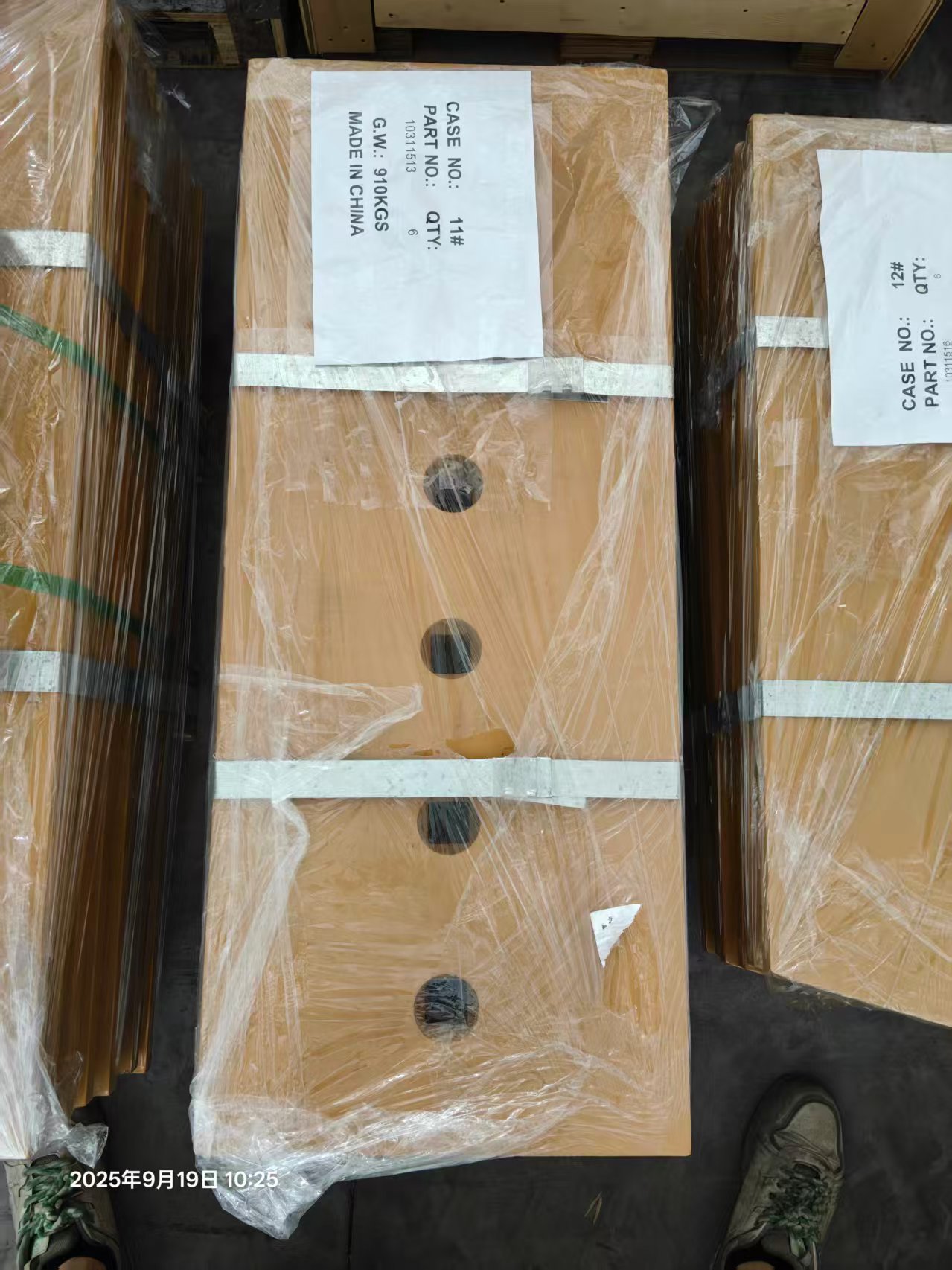

Product Detail: Liebherr PR776 Wear Plate / Liner (P/N: 10311513)

The Heavy-Duty Wear Plate (Part Number: 10311513) is an ultra-durable component engineered for extreme abrasion resistance in demanding dozer applications. With a high hardness rating of HB500, this plate is designed to protect critical surfaces from severe wear, significantly extending the service life of your equipment.
Unit Weight: 134.4 kg - Built for maximum protection in heavy-impact environments.
Exceptional Hardness: Rated at HB500 to withstand extreme abrasion from rock, sand, and other abrasive materials.
Heavy-Duty Construction: Substantial thickness and weight provide superior protection for high-wear areas on dozers.
Precision Engineering: Designed for perfect fitment and secure attachment with six bolt holes.
Reduces Downtime: Protects base structures from wear, minimizing unscheduled repairs and maintenance costs.
Optimized Design: The specific dimensions and hole pattern ensure easy installation and reliable performance.
| Attribute | Specification |
|---|---|
| Part Number | 10311513 |
| Application | Dozer Wear Protection |
| Dimensions (L x W x Th) | 990 mm x 406 mm x 45 mm |
| Bolt Hole Pattern | 6 x Ø36 mm |
| Hardness Rating | HB500 |
| Unit Weight | 134.4 kg (296.3 lbs) |
| Material Grade | High-Strength Abrasion-Resistant Steel |
Primary Use: Designed for heavy-duty dozer applications requiring superior wear resistance
Typical Applications: Blade cutting edges, ripper protection, track frame guards, and other high-wear areas
Ideal For: Mining, quarrying, and major earthmoving operations with highly abrasive conditions
