Product Specification:

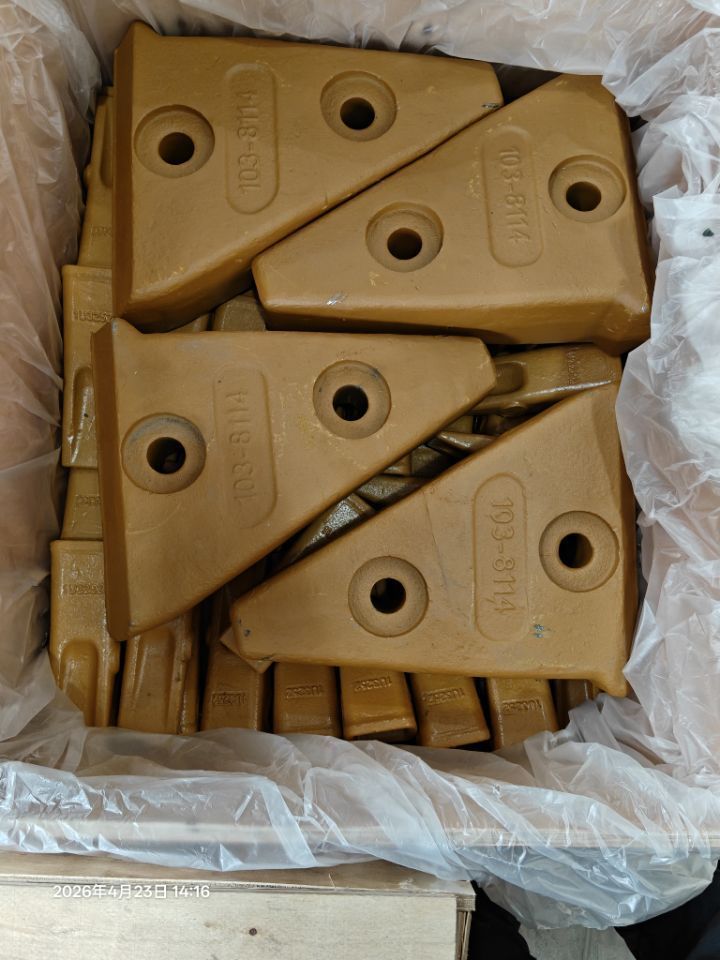

Part Number: 103-8114 (also referenced as 1038114)
Product Name: Shank Repair Nose / Ripper Shank Field Repair Nose
Product Type: Ripper Wear Part / Shank Repair Adapter
Ripper System Compatibility: R500 / CR500
Single Weight: 45 kgs
Material: Boron Steel, Low Alloy Steel
Installation Method: Weld-on
Compatible Machine Models: Caterpillar D10N, Caterpillar D10R, Caterpillar D10T, Caterpillar D11N, Caterpillar D11R, Caterpillar D11T, Caterpillar D9L, Caterpillar D9R, Caterpillar D9T, Caterpillar 375-A Excavator
Application: Mining, quarrying, heavy ripping, shank repair
Note: For detailed dimensions, welding procedures, and installation torque specifications, please contact our sales team.
Key Features:
Heavy-Duty Construction: Engineered for demanding ripping applications on D10 and D11 series dozers
Field Repair Design: Allows restoration of worn or damaged ripper shanks, extending shank service life
R500/CR500 Compatibility: Designed for R500/CR500 ripper tip and protector systems
High-Strength Boron Steel: Manufactured from Boron Steel and Low Alloy Steel for maximum durability
Weld-On Installation: Permanent mounting for maximum strength on large mining rippers
Critical Ripper Component: Provides secure mounting point for ripper tips and protectors
Direct OEM Replacement: Designed to meet OEM specification replacement standards
Compatible Equipment:
Caterpillar D10N – Track-Type Tractor
Caterpillar D10R – Track-Type Tractor
Caterpillar D10T – Track-Type Tractor
Caterpillar D11N – Track-Type Tractor
Caterpillar D11R – Track-Type Tractor
Caterpillar D11T – Track-Type Tractor
Caterpillar D9L – Track-Type Tractor
Caterpillar D9R – Track-Type Tractor
Caterpillar D9T – Track-Type Tractor
Caterpillar 375-A – Excavator
Applications:
Replacement Information:
This shank repair nose serves as a direct aftermarket replacement with OEM reference 103-8114 for Caterpillar D10 and D11 series rippers. The repair nose is engineered to meet OEM specification replacement requirements for ripper shank repair in mining and heavy ripping applications. The R500/CR500 compatibility ensures proper fit with compatible ripper tips and protectors. Use with compatible ripper tips and retaining systems for proper installation.
Related Parts:
Ripper tips for R500/CR500 ripper system
Ripper shank adapters and repair components
Ripper shank protectors and retaining pins
Complete ripper wear protection kits available upon request
FAQ:
Q: Is the 103-8114 a direct replacement for the OEM shank repair nose?
A: Yes, the 103-8114 is manufactured as an aftermarket replacement with OEM specification replacement standards for Caterpillar D10 and D11 ripper shank repair noses.
Q: What machines is this shank repair nose compatible with?
A: It is specifically designed for Caterpillar D10N, D10R, D10T, D11N, D11R, D11T, D9L, D9R, D9T dozers, and 375-A excavators. Verify compatibility with your specific ripper system before installation.
Q: What is the weight of the 103-8114 shank repair nose?
A: The single weight is 45 kgs.
Q: What is the function of a shank repair nose?
A: A shank repair nose allows field repair of worn or damaged ripper shanks, restoring the mounting point for ripper tips and protectors, extending the service life of the ripper shank.
Q: What ripper system is this nose compatible with?
A: The 103-8114 is designed for the R500/CR500 ripper system, compatible with R500/CR500 tips and protectors.
Q: What material is this shank repair nose made from?
A: The 103-8114 is manufactured from Boron Steel and Low Alloy Steel for durability in demanding ripping applications.
Q: What is the lead time for this replacement part?
A: Please contact our sales team for current stock availability and shipping estimates.
