| Availability: | |
|---|---|

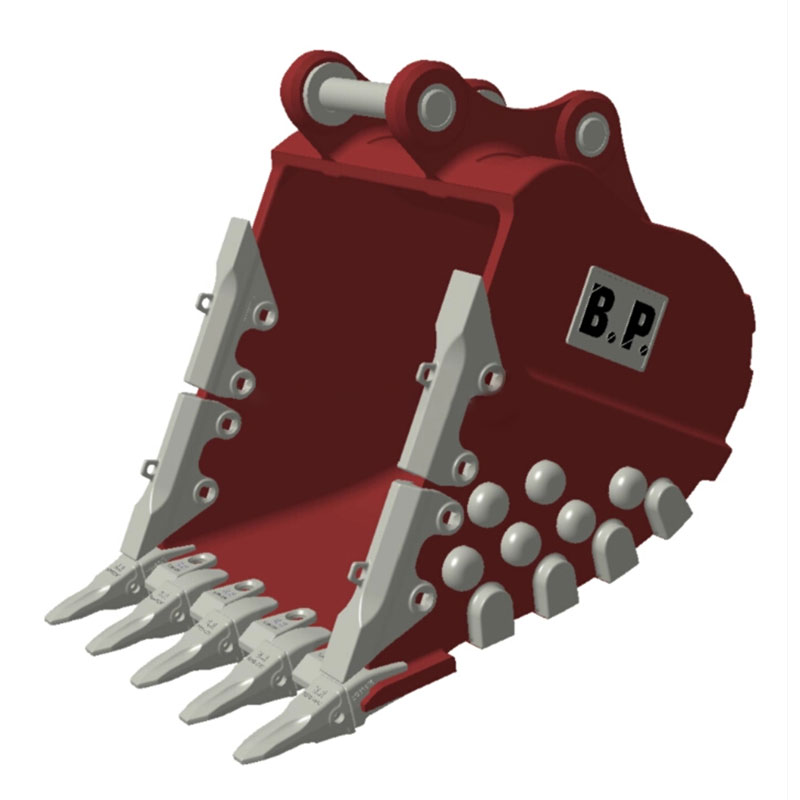

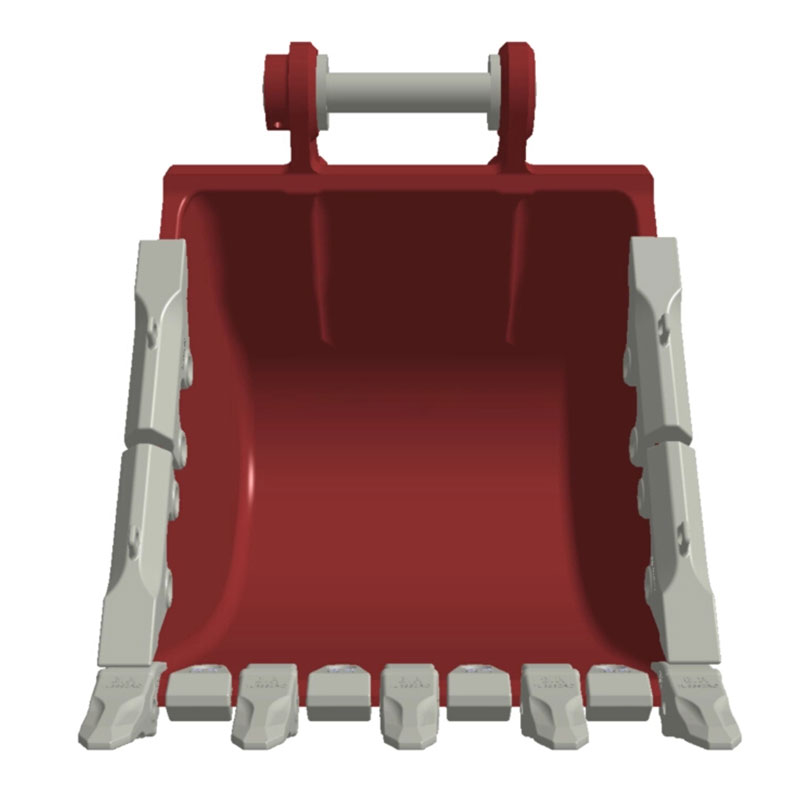

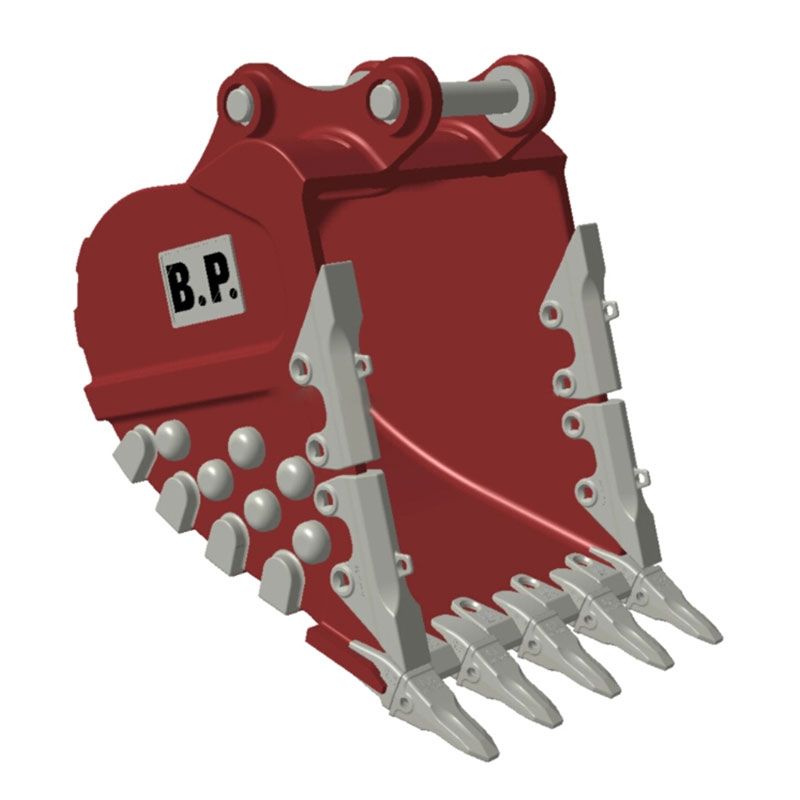

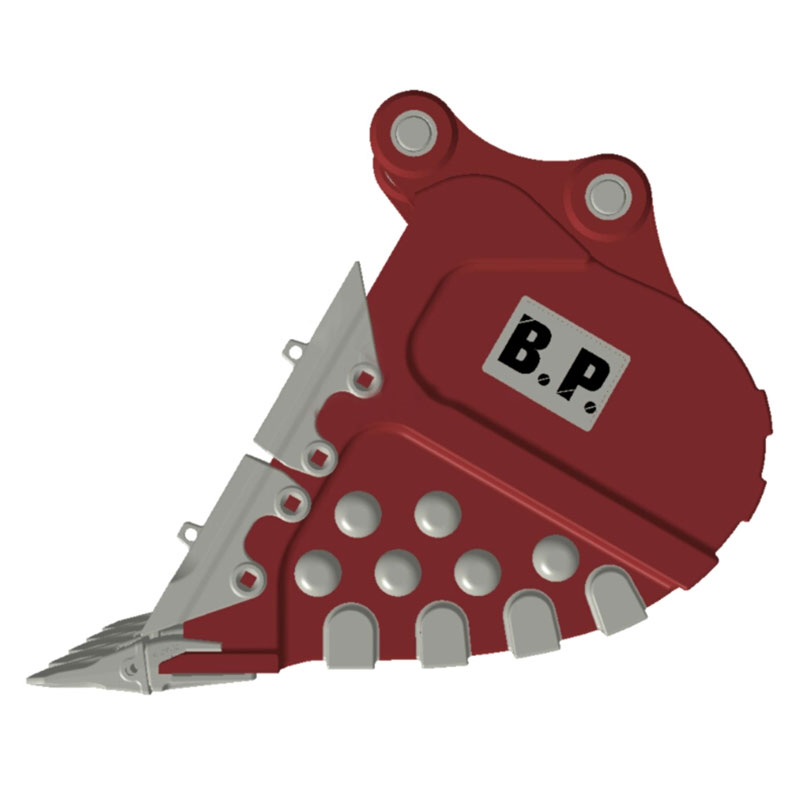

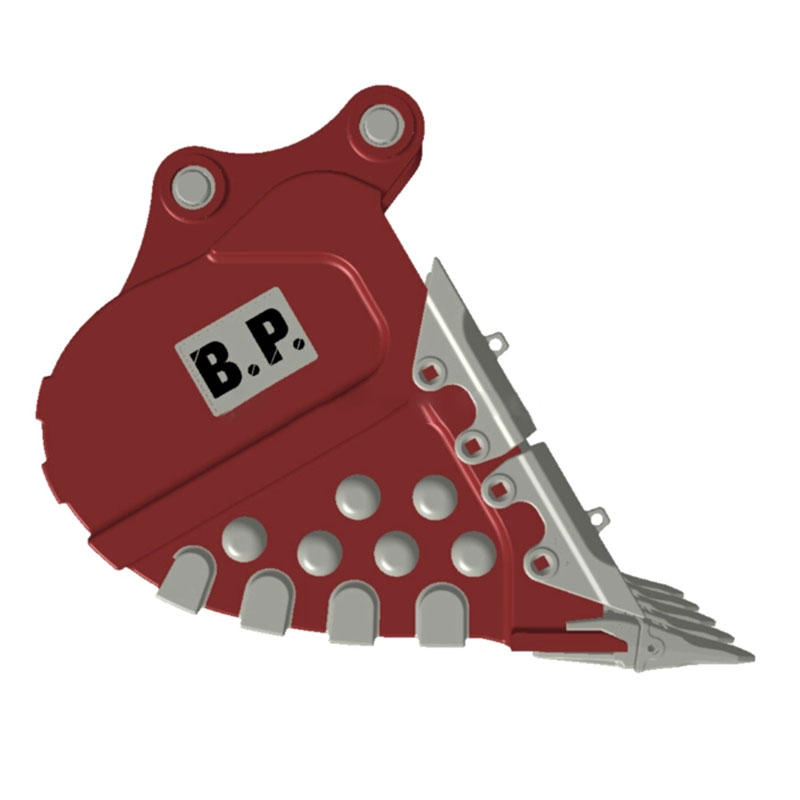

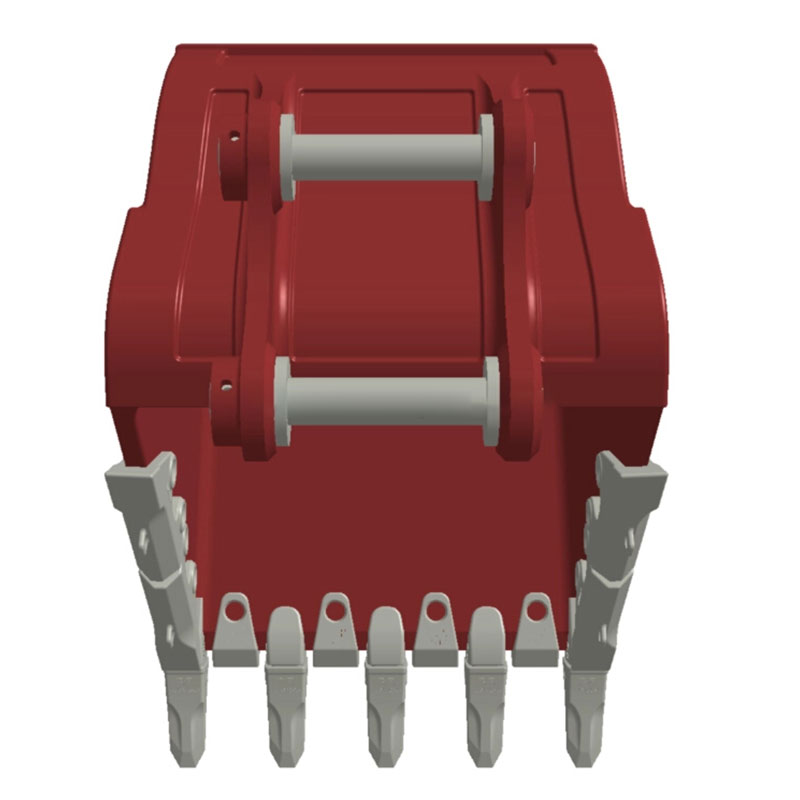

| Name | Excavator bucket |
| Type | Heavy duty |
| Weight (KGS/LBS) | 2000/4409.25 |
| Struck Capacity (m³/yd³) | 0.98/1.28 |
| Rated Capacity (m³/yd³) | 1.29/1.69 |
| Opening (mm/INS) | 1380/54.33 |
| Depth (mm/INS) | 930/36.61 |
| Width (mm/INS) | 1180/46.46 |
| Teeth QTY | 6 |
| Lip Thickness (mm/INS) | 50/1.97 |
| Brand | Beneparts |
| MOQ | 1pcs |
| Warranty | One Year |
| Bucket Design | Heavy duty flat floor design with outside bottom wear strips, upper and lower side kick plates. |
| Bucket Shape | Straight or spade lip, vertical shrouds, optional weld-on lip shrouds or Jbot lip shrouds. Enhanced bucket shap allws material to flow more easil. Tapered bucket sidewalls allow for easy dumping of sticky material. |
| Superior bucket fill | Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing. |
| Application | Applicable to slope-suface trimming,waterways dredging .water diching,etc. Designed for a wide variety of appications and materials. Kndly recommended for dirt,loam,grave.abrasive soils with limited rock. |
| Excavator Brands | The products we offer are fited for all of the world famous excavator brands, such as Kobelco, Hitachi, Sany, VolvO, XGMG, Takenchi, etc. |
| Caterpillar | E70 E110E120B E180 E200B E240 E300B E307 CAT311 CAT312E320 E325 E330E450 MS180 |
| Komatsu | PC40-7PC60-5-6-7PC75 PC100-3-5PC120-5 PC130 PC200-2-3-4-5-6-7-8 PC220-1-3-5 PC230 PC240 PC30-1-5-6-7 PC400-1-3-5 |
| Volvo | EC55B EC60C EC140B EC200B EC210B EC240B EC290B EC360B EC460B EC550 |
| Hitachi | EX40 EX55ZX55 EX55-5B EX60-2-3EX70(ZX7O)EX1O0MEX100-1-2-3-5EX120EX150EX160EX2O00-1-2-3-5ZX20OZX210EX220-ZX230 EX300-1-2-3-5EX330 EX400 UHO8 UHO7 UH10 UH14 |
| Sumitomo | SH6O SH65 SH100 SH120-A3 SH120 SH200 SH220-1-5-SH2E0 SH280 SH30-1-2-3 SHR340 SH580-5825 S35S120 S160 8250 8260 S265F2 S280 S280F2 S280FA |
| Kobelco | SK30 SK40 SK60 SK100 SK120 SK200-1-6 SK220-1-3 SK230-3-6 SK300 SK320 SK07-1-2-7 SKO7N2 SKO9 |
| Daewoo | DH5 DH6O DH7ODH3O DH15O DH150W DH175 DH20O DH210 DH215-7-9 DH220-3-5-7DH225 DH255 DH258 DH28O DH3OO DH320 DH330 DH340 DH370 DH400 |
| Kato | HD250 HD250SE HD400 HD450 HD500 HD510 HD550 HD550SE HD650 HD700 HD770 HD800 HD1250 HD1430 |
| Hyundai | R55 R60-5-7-9 R80 R110R130-1-2-7R150 R190 R200-1-2R210R215 R220 R225-7R265 R290 R305 R455 |
| Bulldozer | D20 D31D50 D6O D65 D30 D40 D60-3 D6B D5 D8O D85 D3C D4C D4D D75D80A-7 D4ED4H-1D31-15D31-18 D50-15 D50-16 D6GDD5HD8ND9N D156 D31 D355 D10 |
